72. Distributed Array Datatype Constructor


Up: Derived Datatypes Next: Address and Size Functions Previous: Subarray Datatype Constructor

The distributed array type constructor supports HPF-like [30] data distributions. However, unlike in HPF, the storage order may be specified for C arrays as well as for Fortran arrays.


Advice to users.

One can create an HPF-like file view using this type constructor as follows. Complementary filetypes are created by having every process of a group call this constructor with identical arguments (with the exception of rank which should be set appropriately). These filetypes (along with identical disp and etype) are then used to define the view (via MPI_FILE_SET_VIEW), see MPI I/O, especially Section Definitions on page Definitions and Section File Views on page File Views . Using this view, a collective data access operation (with identical offsets) will yield an HPF-like distribution pattern. ( End of advice to users.)
MPI_TYPE_CREATE_DARRAY(size, rank, ndims, array_of_gsizes, array_of_distribs, array_of_dargs, array_of_psizes, order, oldtype, newtype)
IN sizesize of process group (positive integer)
IN rankrank in process group (non-negative integer)
IN ndimsnumber of array dimensions as well as process grid dimensions (positive integer)
IN array_of_gsizesnumber of elements of type oldtype in each dimension of global array (array of positive integers)
IN array_of_distribsdistribution of array in each dimension (array of state)
IN array_of_dargsdistribution argument in each dimension (array of positive integers)
IN array_of_psizessize of process grid in each dimension (array of positive integers)
IN orderarray storage order flag (state)
IN oldtypeold datatype (handle)
OUT newtypenew datatype (handle)

int MPI_Type_create_darray(int size, int rank, int ndims, int array_of_gsizes[], int array_of_distribs[], int array_of_dargs[], int array_of_psizes[], int order, MPI_Datatype oldtype, MPI_Datatype *newtype)
MPI_TYPE_CREATE_DARRAY(SIZE, RANK, NDIMS, ARRAY_OF_GSIZES, ARRAY_OF_DISTRIBS, ARRAY_OF_DARGS, ARRAY_OF_PSIZES, ORDER, OLDTYPE, NEWTYPE, IERROR)
INTEGER SIZE, RANK, NDIMS, ARRAY_OF_GSIZES(*), ARRAY_OF_DISTRIBS(*), ARRAY_OF_DARGS(*), ARRAY_OF_PSIZES(*), ORDER, OLDTYPE, NEWTYPE, IERROR
{ MPI::Datatype MPI::Datatype::Create_darray(int size, int rank, int ndims, const int array_of_gsizes[], const int array_of_distribs[], const int array_of_dargs[], const int array_of_psizes[], int order) const (binding deprecated, see Section Deprecated since MPI-2.2 ) }

MPI_TYPE_CREATE_DARRAY can be used to generate the datatypes corresponding to the distribution of an ndims-dimensional array of oldtype elements onto an ndims-dimensional grid of logical processes. Unused dimensions of array_of_psizes should be set to 1. (See Example Distributed Array Datatype Constructor , page Distributed Array Datatype Constructor .) For a call to MPI_TYPE_CREATE_DARRAY to be correct, the equation prodi=0ndims-1 array_of_psizes[i] = size must be satisfied. The ordering of processes in the process grid is assumed to be row-major, as in the case of virtual Cartesian process topologies .
Advice to users.

For both Fortran and C arrays, the ordering of processes in the process grid is assumed to be row-major. This is consistent with the ordering used in virtual Cartesian process topologies in MPI. To create such virtual process topologies, or to find the coordinates of a process in the process grid, etc., users may use the corresponding process topology functions, see Chapter Process Topologies on page Process Topologies . ( End of advice to users.)

Each dimension of the array can be distributed in one of three ways:


The constant MPI_DISTRIBUTE_DFLT_DARG specifies a default distribution argument. The distribution argument for a dimension that is not distributed is ignored. For any dimension i in which the distribution is MPI_DISTRIBUTE_BLOCK, it is erroneous to specify array_of_dargs[i] * array_of_psizes[i] < array_of_gsizes[i].

For example, the HPF layout ARRAY(CYCLIC(15)) corresponds to MPI_DISTRIBUTE_CYCLIC with a distribution argument of 15, and the HPF layout ARRAY(BLOCK) corresponds to MPI_DISTRIBUTE_BLOCK with a distribution argument of MPI_DISTRIBUTE_DFLT_DARG.

The order argument is used as in MPI_TYPE_CREATE_SUBARRAY to specify the storage order. Therefore, arrays described by this type constructor may be stored in Fortran (column-major) or C (row-major) order. Valid values for order are MPI_ORDER_FORTRAN and MPI_ORDER_C.

This routine creates a new MPI datatype with a typemap defined in terms of a function called ``cyclic()'' (see below).

Without loss of generality, it suffices to define the typemap for the MPI_DISTRIBUTE_CYCLIC case where MPI_DISTRIBUTE_DFLT_DARG is not used.

MPI_DISTRIBUTE_BLOCK and MPI_DISTRIBUTE_NONE can be reduced to the MPI_DISTRIBUTE_CYCLIC case for dimension i as follows.

MPI_DISTRIBUTE_BLOCK with array_of_dargs[i] equal to MPI_DISTRIBUTE_DFLT_DARG is equivalent to MPI_DISTRIBUTE_CYCLIC with array_of_dargs[i] set to

(mpiargarray_of_gsizes[i] + mpiargarray_of_psizes[i] - 1) / mpiargarray_of_psizes[i].

If array_of_dargs[i] is not MPI_DISTRIBUTE_DFLT_DARG, then MPI_DISTRIBUTE_BLOCK and MPI_DISTRIBUTE_CYCLIC are equivalent.

MPI_DISTRIBUTE_NONE is equivalent to MPI_DISTRIBUTE_CYCLIC with array_of_dargs[i] set to array_of_gsizes[i].

Finally, MPI_DISTRIBUTE_CYCLIC with array_of_dargs[i] equal to MPI_DISTRIBUTE_DFLT_DARG is equivalent to MPI_DISTRIBUTE_CYCLIC with array_of_dargs[i] set to 1.

For MPI_ORDER_FORTRAN, an ndims-dimensional distributed array ( newtype) is defined by the following code fragment:


    oldtype[0] = oldtype;
    for ( i = 0; i < ndims; i++ ) {
       oldtype[i+1] = cyclic(array_of_dargs[i],
                             array_of_gsizes[i],
                             r[i],
                             array_of_psizes[i],
                             oldtype[i]);
    }
    newtype = oldtype[ndims];
For MPI_ORDER_C, the code is:


    oldtype[0] = oldtype;
    for ( i = 0; i < ndims; i++ ) {
       oldtype[i + 1] = cyclic(array_of_dargs[ndims - i - 1],
                               array_of_gsizes[ndims - i - 1],
                               r[ndims - i - 1],
                               array_of_psizes[ndims - i - 1],
                               oldtype[i]);
    }
    newtype = oldtype[ndims];

where r[i] is the position of the process (with rank rank) in the process grid at dimension i. The values of r[i] are given by the following code fragment:


        t_rank = rank;
        t_size = 1;
        for (i = 0; i < ndims; i++)
                t_size *= array_of_psizes[i];
        for (i = 0; i < ndims; i++) {
            t_size = t_size / array_of_psizes[i];
            r[i] = t_rank / t_size;
            t_rank = t_rank % t_size;
        }
Let the typemap of oldtype have the form: {(type0,disp0),(type1,disp1),...,(typen-1,dispn-1)} where typei is a predefined MPI datatype, and let ex be the extent of oldtype.

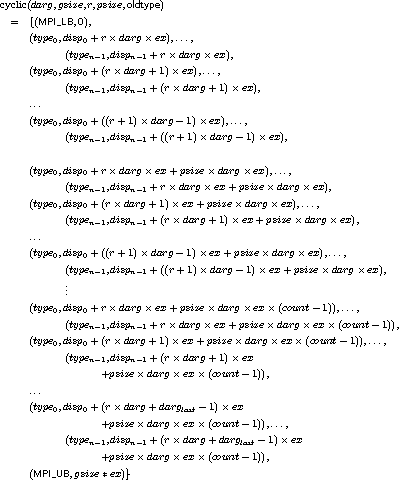

Given the above, the function cyclic() is defined as follows:

where count is defined by this code fragment:

        nblocks = (gsize + (darg - 1)) / darg;
        count = nblocks / psize;
        left_over = nblocks - count * psize;
        if (r < left_over)
            count = count + 1;
Here, nblocks is the number of blocks that must be distributed among the processors. Finally, darglast is defined by this code fragment:
        if ((num_in_last_cyclic = gsize % (psize * darg)) == 0)
             darg_last = darg;
        else
             darg_last = num_in_last_cyclic - darg * r;
             if (darg_last > darg)
                    darg_last = darg;
             if (darg_last <= 0)
                    darg_last = darg;


Example Consider generating the filetypes corresponding to the HPF distribution:

      <oldtype> FILEARRAY(100, 200, 300)
!HPF$ PROCESSORS PROCESSES(2, 3)
!HPF$ DISTRIBUTE FILEARRAY(CYCLIC(10), *, BLOCK) ONTO PROCESSES
This can be achieved by the following Fortran code, assuming there will be six processes attached to the run:
