20.3.6. MPI Opaque Objects

PreviousUpNext
Up: Language Interoperability Next: Datatypes Previous: Status

Unless said otherwise, opaque objects are ``the same'' in all languages: they carry the same information, and have the same meaning in both languages. The mechanism described in the previous section can be used to pass references to MPI objects from language to language. An object created in one language can be accessed, modified or freed in another language.

We examine below in more detail issues that arise for each type of MPI object.


PreviousUpNext
Up: Language Interoperability Next: Datatypes Previous: Status


20.3.6.1. Datatypes

PreviousUpNext
Up: MPI Opaque Objects Next: Callback Functions Previous: MPI Opaque Objects

Datatypes encode the same information in all languages. E.g., a datatype accessor like MPI_TYPE_GET_EXTENT will return the same information in all languages. If a datatype defined in one language is used for a communication call in another language, then the message sent will be identical to the message that would be sent from the first language: the same communication buffer is accessed, and the same representation conversion is performed, if needed. All predefined datatypes can be used in datatype constructors in any language. If a datatype is committed, it can be used for communication in any language.

The function MPI_GET_ADDRESS returns the same value in all languages. Note that we do not require that the constant MPI_BOTTOM have the same value in all languages (see Section Constants).

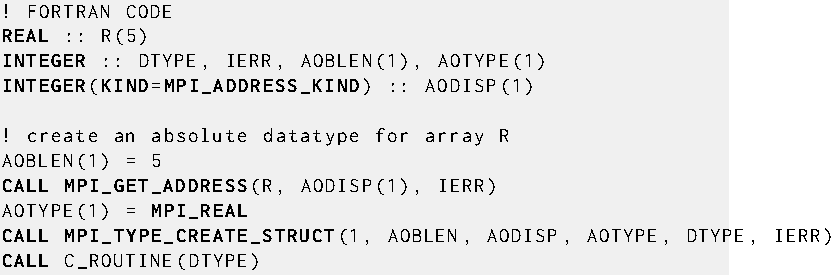

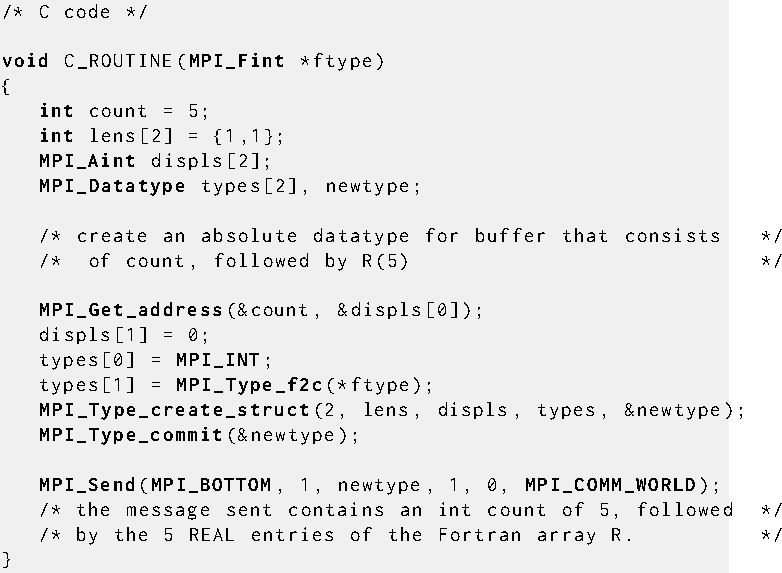

Example Absolute addresses and the conversion of datatype handles in a mixed Fortran/C program.

Image file

Image file


Advice to implementors.

The following implementation can be used: MPI addresses, as returned by MPI_GET_ADDRESS, will have the same value in all languages. One obvious choice is that MPI addresses be identical to regular addresses. The address is stored in the datatype, when datatypes with absolute addresses are constructed. When a send or receive operation is performed, then addresses stored in a datatype are interpreted as displacements that are all augmented by a base address. This base address is (the address of) buf, or zero, if buf = MPI_BOTTOM. Thus, if MPI_BOTTOM is zero then a send or receive call with buf = MPI_BOTTOM is implemented exactly as a call with a regular buffer argument: in both cases the base address is buf. On the other hand, if MPI_BOTTOM is not zero, then the implementation has to be slightly different. A test is performed to check whether buf = MPI_BOTTOM. If true, then the base address is zero, otherwise it is buf. In particular, if MPI_BOTTOM does not have the same value in Fortran and C, then an additional test for buf = MPI_BOTTOM is needed in at least one of the languages.

It may be desirable to use a value other than zero for MPI_BOTTOM even in C, so as to distinguish it from a NULL pointer. If MPI_BOTTOM = c then one can still avoid the test buf = MPI_BOTTOM, by using the displacement from MPI_BOTTOM, i.e., the regular address - c, as the MPI address returned by MPI_GET_ADDRESS and stored in absolute datatypes. ( End of advice to implementors.)


PreviousUpNext
Up: MPI Opaque Objects Next: Callback Functions Previous: MPI Opaque Objects


20.3.6.2. Callback Functions

PreviousUpNext
Up: MPI Opaque Objects Next: Error Handlers Previous: Datatypes

MPI calls may associate callback functions with MPI objects: error handlers are associated with communicators, files, windows, and sessions; attribute copy and delete functions are associated with attribute keys; reduce operations are associated with operation objects, etc. In a multilanguage environment, a function passed in an MPI call in one language may be invoked by an MPI call in another language. MPI implementations must make sure that such invocation will use the calling convention of the language the function is bound to.


Advice to implementors.

Callback functions need to have a language tag. This tag is set when the callback function is passed in by the library function (which is presumably different for each language and language support method), and is used to generate the right calling sequence when the callback function is invoked. ( End of advice to implementors.)

Advice to users.

If a subroutine written in one language or Fortran support method wants to pass a callback routine including the predefined Fortran functions (e.g., MPI_COMM_NULL_COPY_FN) to another application routine written in another language or Fortran support method, then it must be guaranteed that both routines use the callback interface definition that is defined for the argument when passing the callback to an MPI routine (e.g., MPI_COMM_CREATE_KEYVAL); see also the advice to users on page Communicators. ( End of advice to users.)


PreviousUpNext
Up: MPI Opaque Objects Next: Error Handlers Previous: Datatypes


20.3.6.3. Error Handlers

PreviousUpNext
Up: MPI Opaque Objects Next: Reduce Operations Previous: Callback Functions


Advice to implementors.

Error handlers, have, in C, a variable length argument list. It might be useful to provide to the handler information on the language environment where the error occurred. ( End of advice to implementors.)


PreviousUpNext
Up: MPI Opaque Objects Next: Reduce Operations Previous: Callback Functions


20.3.6.4. Reduce Operations

PreviousUpNext
Up: MPI Opaque Objects Next: Attributes Previous: Error Handlers

All predefined named and unnamed datatypes as listed in Section Predefined Reduction Operations can be used in the listed predefined operations independent of the programming language from which the MPI routine is called.


Advice to users.

Reduce operations receive as one of their arguments the datatype of the operands. Thus, one can define ``polymorphic'' reduce operations that work for C and Fortran datatypes. ( End of advice to users.)


PreviousUpNext
Up: MPI Opaque Objects Next: Attributes Previous: Error Handlers
