3.4.1. MPI Operations

Up: Semantic Terms Next: MPI Procedures Previous: Semantic Terms

MPI operation:
An MPI operation is a sequence of steps performed by the MPI library to establish and enable data transfer and/or synchronization. It consists of four stages: initialization, starting, completion, and freeing, and it is implemented as a set of one or more MPI procedures, see Section MPI Procedures.

hands over the argument list to the operation but not the content of the data buffers, if any. The specification of an operation may state that array arguments must not be changed until the operation is freed.

hands over control of the data buffers, if any, to the associated operation.

Note that initiation refers to the combination of the initialization and starting stages.

returns control of the content of the data buffers and indicates that output buffers and arguments, if any, have been updated.

Note that an MPI operation is complete when the MPI procedure implementing the completion stage returns.

returns control of the rest of the argument list (e.g., the data buffer address and array arguments).

MPI operations are available in one or more of these forms: blocking, nonblocking, and persistent.

Blocking operation:
For a blocking operation, all four stages are combined in a single procedure call (as shown in Figure 1 and defined in Section MPI Procedures).

Image file

Figure 1: State transition diagram for blocking operations

Nonblocking operation:
For a nonblocking operation, the initialization and starting stages are combined into a single nonblocking procedure call and the completion and freeing stages are combined into a separate, single procedure call, which can be blocking or nonblocking (as shown in Figure 2 and defined in Section MPI Procedures).

Image file

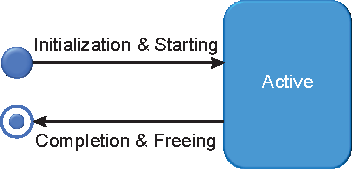

Figure 2: State transition diagram for nonblocking operations

Persistent operation:
For a persistent operation, there is a separate procedure for each of the four stages (as shown in Figure 3 and defined in Section MPI Procedures). Each of these procedures may be blocking or nonblocking.

For a partitioned send operation, an additional call to activate each partition of the send buffer (see Section Communication Initialization and Starting with Partitioning) is required to finish the starting stage. For a partitioned receive operation, before the operation is complete the user is allowed to access a partition of the output buffer after verifying that it has arrived (see Section Communication Completion under Partitioning).

Image file

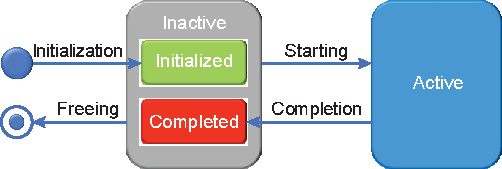

Figure 3: State transition diagram for persistent operations

These four stages lead to the operation states initialized, started, complete, and freed. A started operation is also named active, and the states initialized and complete are also named inactive.

Active communication and I/O operations are also named pending operations. Note that a pending operation can be a nonblocking or persistent operation that is started and not yet complete (even if the request handle has been freed), or a blocking operation that is not yet complete, such as a receive operation that is waiting for a message to be received.

Additionally, an MPI operation can be collective or noncollective.

Collective operation:
A set of related operations, one per MPI process in a group or groups of MPI processes. For collective operations the completion stage may or may not finish before all processes in the group have started the operation.

Collective MPI operations are also available as blocking, nonblocking, or persistent operations.

Noncollective operation:
Noncollective operations are defined as operations that are not collective.

Many MPI operations coordinate activities at multiple MPI processes: the semantics of such an operation require one or more other specific semantically-related operations to be started before it is guaranteed that the operation can transition to the complete operation state. For example, a receive operation requires a related send operation to be started before the receive can complete; or a collective operation might not complete before such operations are also started in all MPI processes of the respective group.

An MPI operation is enabled at a particular MPI process when all specific semantically-related operations required to guarantee completion at that MPI process have been started.


MPI implementations may include optimizations (for example, automatic buffering) that allow an MPI operation to complete before it is enabled. ( End of rationale.)
Some MPI operations are a priori enabled, i.e., they do not require any other specific semantically-related operation for completion. For example, a buffered send operation completes independently of the related receive operation.

Once an MPI operation is enabled, the operation must eventually complete. An operation may already be enabled before it is started. For example, a receive operation is already enabled if it is started after the matching send operation was started.


The definition of an operation A being enabled is asymmetric: enabled includes that all specific semantically-related operations A'i required to guarantee completion have been started, but does not include that the operation A itself is already started.


Specifically, for the set of related operations on a group of MPI processes that constitute a collective operation that may synchronize, the operation on a particular MPI process p is enabled when all other MPI processes Image file in the group have started their related operation, while the operation on p need not have started yet. ( End of rationale.)
