4.6.1. Examples using MPI_SCATTER, MPI_SCATTERV


Up: Scatter Next: Gather-to-all Previous: Scatter


Example

The reverse of Example Examples using MPI_GATHER, MPI_GATHERV . Scatter sets of 100 ints from the root to each process in the group. See figure 8 .


MPI_Comm comm;
    int gsize,*sendbuf;
    int root, rbuf[100];
    ...
    MPI_Comm_size( comm, &gsize);
    sendbuf = (int *)malloc(gsize*100*sizeof(int));
    ...
    MPI_Scatter( sendbuf, 100, MPI_INT, rbuf, 100, MPI_INT, root, comm);

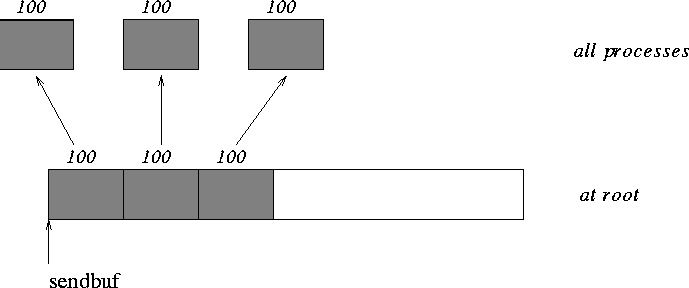

Figure 8: The root process scatters sets of 100  ints to each process in the group.


Example

The reverse of Example Examples using MPI_GATHER, MPI_GATHERV . The root process scatters sets of 100 ints to the other processes, but the sets of 100 are stride ints apart in the sending buffer. Requires use of MPI_SCATTERV. Assume . See figure 9 .


MPI_Comm comm;
    int gsize,*sendbuf;
    int root, rbuf[100], i, *displs, *scounts;

...

MPI_Comm_size( comm, &gsize); sendbuf = (int *)malloc(gsize*stride*sizeof(int)); ... displs = (int *)malloc(gsize*sizeof(int)); scounts = (int *)malloc(gsize*sizeof(int)); for (i=0; i<gsize; ++i) { displs[i] = i*stride; scounts[i] = 100; } MPI_Scatterv( sendbuf, scounts, displs, MPI_INT, rbuf, 100, MPI_INT, root, comm);

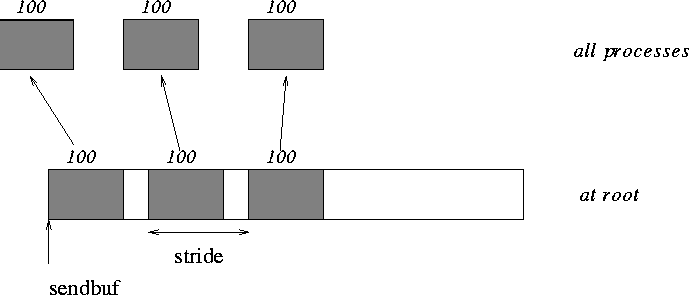

Figure 9: The root process scatters sets of 100  ints, moving by  stride ints from send to send in the scatter.


Example

The reverse of Example Examples using MPI_GATHER, MPI_GATHERV . We have a varying stride between blocks at sending (root) side, at the receiving side we receive into the ith column of a 100 150 C array. See figure 10 .


MPI_Comm comm;
    int gsize,recvarray[100][150],*rptr;
    int root, *sendbuf, myrank, bufsize, *stride;
    MPI_Datatype rtype;
    int i, *displs, *scounts, offset;
    ...
    MPI_Comm_size( comm, &gsize);
    MPI_Comm_rank( comm, &myrank );

stride = (int *)malloc(gsize*sizeof(int)); ... /* stride[i] for i = 0 to gsize-1 is set somehow * sendbuf comes from elsewhere */ ... displs = (int *)malloc(gsize*sizeof(int)); scounts = (int *)malloc(gsize*sizeof(int)); offset = 0; for (i=0; i<gsize; ++i) { displs[i] = offset; offset += stride[i]; scounts[i] = 100 - i; } /* Create datatype for the column we are receiving */ MPI_Type_vector( 100-myrank, 1, 150, MPI_INT, &rtype); MPI_Type_commit( &rtype ); rptr = &recvarray[0][myrank]; MPI_Scatterv( sendbuf, scounts, displs, MPI_INT, rptr, 1, rtype, root, comm);

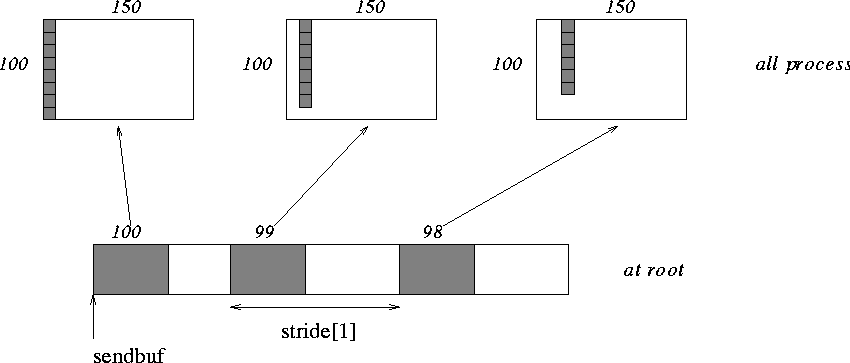

Figure 10: The root scatters blocks of 100-i ints into column  i of a 100$ x $150 C array. At the sending side, the blocks are  stride[i] ints apart.
