6.1.11. Use of General Datatypes in Communication

PreviousUpNext
Up: Derived Datatypes Next: Correct Use of Addresses Previous: Duplicating a Datatype

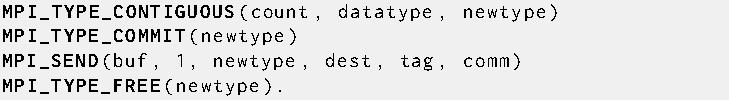

Handles to derived datatypes can be passed to a communication call wherever a datatype argument is required. A call of the form MPI_SEND(buf, count, datatype, ...), where Image file , is interpreted as if the call was passed a new datatype that is the concatenation of count copies of datatype. Thus, MPI_SEND(buf, count, datatype, dest, tag, comm) is equivalent to,

Image file

Similar statements apply to all other communication procedures that have a count and datatype argument.

Suppose that a send operation MPI_SEND(buf, count, datatype, dest, tag, comm) is executed, where datatype has type map,

Image file

and extent extent. (Explicit lower bound and upper bound markers are not listed in the type map, but they affect the value of extent.) The send operation sends Image file entries, where entry i · n + j is at location Image file

and has type Image file , for Image file and j = 0 ,..., n-1. These entries need not be contiguous, nor distinct; their order can be arbitrary.

The variable stored at address addri,j in the calling program should be of a type that matches Image file , where type matching is defined as in Section Type Matching Rules. The message sent contains Image file entries, where entry i · n +j has type Image file .

Similarly, suppose that a receive operation MPI_RECV(buf, count, datatype, source, tag, comm, status) is executed, where datatype has type map, Image file with extent extent. (Again, explicit lower bound and upper bound markers are not listed in the type map, but they affect the value of extent.) This receive operation receives Image file entries, where entry i · n + j is at location Image file

and has type Image file . If the incoming message consists of k elements, then we must have Image file ; the i · n + j-th element of the message should have a type that matches Image file .

Type matching is defined according to the type signature of the corresponding datatypes, that is, the sequence of basic type components. Type matching does not depend on some aspects of the datatype definition, such as the displacements (layout in memory) or the intermediate types used.

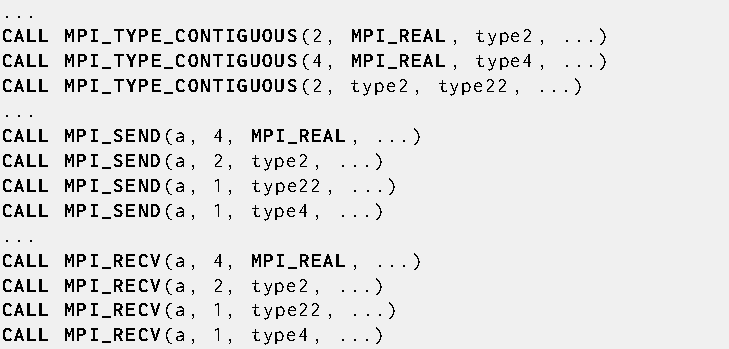

Example This example shows that type matching is defined in terms of the basic types that a derived type consists of.

Image file

Each of the sends matches any of the receives.

A datatype may specify overlapping entries. The use of such a datatype in any communication in association with a buffer updated by the operation is erroneous. (This is erroneous even if the actual message received is short enough not to write any entry more than once.)

Suppose that MPI_RECV(buf, count, datatype, dest, tag, comm, status) is executed, where datatype has type map, Image file The received message need not fill all the receive buffer, nor does it need to fill a number of locations that is a multiple of n. Any number, k, of basic elements can be received, where Image file . The number of basic elements received can be retrieved from status using the query procedure MPI_GET_ELEMENTS.

MPI_GET_ELEMENTS(status, datatype, count)
IN statusreturn status of receive operation (status)
IN datatypedatatype used by receive operation (handle)
OUT countnumber of received basic elements (integer)
C binding
int MPI_Get_elements(const MPI_Status *status, MPI_Datatype datatype, int *count)
int MPI_Get_elements_c(const MPI_Status *status, MPI_Datatype datatype, MPI_Count *count)
Fortran 2008 binding
MPI_Get_elements(status, datatype, count, ierror)

TYPE(MPI_Status), INTENT(IN) :: status
TYPE(MPI_Datatype), INTENT(IN) :: datatype
INTEGER, INTENT(OUT) :: count
INTEGER, OPTIONAL, INTENT(OUT) :: ierror
MPI_Get_elements(status, datatype, count, ierror) !(_c)

TYPE(MPI_Status), INTENT(IN) :: status
TYPE(MPI_Datatype), INTENT(IN) :: datatype
INTEGER(KIND=MPI_COUNT_KIND), INTENT(OUT) :: count
INTEGER, OPTIONAL, INTENT(OUT) :: ierror
Fortran binding
MPI_GET_ELEMENTS(STATUS, DATATYPE, COUNT, IERROR)

INTEGER STATUS(MPI_STATUS_SIZE), DATATYPE, COUNT, IERROR

The datatype argument should match the argument provided by the receive call that set the status variable. For both procedures, if the OUT parameter cannot express the value to be returned (e.g., if the parameter is too small to hold the output value), it is set to MPI_UNDEFINED.

The previously defined procedure MPI_GET_COUNT (Section Return Status), has a different behavior. It returns the number of ``top-level entries'' received, i.e., the number of ``copies'' of type datatype. In the previous example, MPI_GET_COUNT may return any integer value k, where Image file . If MPI_GET_COUNT returns k, then the number of basic elements received (and the value returned by MPI_GET_ELEMENTS) is n · k. If the number of basic elements received is not a multiple of n, that is, if the receive operation has not received an integral number of datatype ``copies,'' then MPI_GET_COUNT sets the value of count to MPI_UNDEFINED.

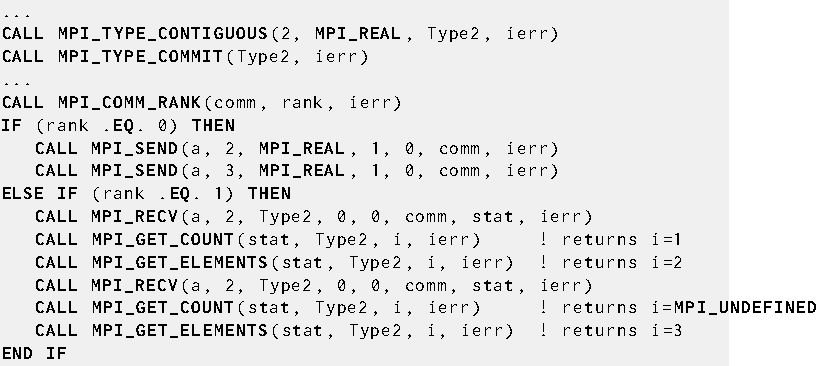

Example Usage of MPI_GET_COUNT and MPI_GET_ELEMENTS.

Image file

The procedure MPI_GET_ELEMENTS can also be used after a probe to find the number of elements in the probed message. Note that the MPI_GET_COUNT and MPI_GET_ELEMENTS return the same values when they are used with basic datatypes as long as the limits of their respective count arguments are not exceeded.


Rationale.

The extension given to the definition of MPI_GET_COUNT seems natural: one would expect this procedure to return the value of the count argument, when the receive buffer is filled. Sometimes datatype represents a basic unit of data one wants to transfer, for example, a record in an array of records (structures). One should be able to find out how many components were received without bothering to divide by the number of elements in each component. However, on other occasions, datatype is used to define a complex layout of data in the receiver memory, and does not represent a basic unit of data for transfers. In such cases, one needs to use the procedure MPI_GET_ELEMENTS. ( End of rationale.)

Advice to implementors.

The definition implies that a receive cannot change the value of storage outside the entries defined to compose the communication buffer. In particular, the definition implies that padding space in a structure should not be modified when such a structure is copied from one process to another. This would prevent the obvious optimization of copying the structure, together with the padding, as one contiguous block. The implementation is free to do this optimization when it does not impact the outcome of the computation. The user can ``force'' this optimization by explicitly including padding as part of the message. ( End of advice to implementors.)
